Residual stress analysis in robotically welded plates using phased array ultrasonics with validation through neutron diffraction and hole-drilling methods

Mills, Brandon and Walker, Joseph and Javadi, Yashar and MacLeod, Charles N. and Alipooramirabad, Houman and Reid, Mark and Paradowska, Anna (2025) Residual stress analysis in robotically welded plates using phased array ultrasonics with validation through neutron diffraction and hole-drilling methods. International Journal of Pressure Vessels and Piping, 216. p. 105518. ISSN 0308-0161

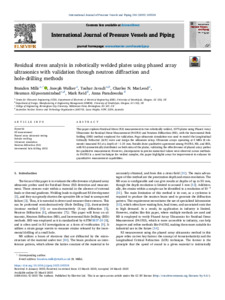

Preview

Text 1-s2.0-S0308016125000882-main.pdf - Published Version Available under License Creative Commons Attribution. Download (31MB)

Abstract

This paper explores Residual Stress (RS) measurement in two robotically welded, S275 plates using Phased Array Ultrasonics for Residual Stress Measurement (PAURS) and Neutron Diffraction (ND), with the Incremental Hole Drilling (IHD) method employed for validation. Pogo ultrasonic simulation was used to model the Longitudinal Critically Refracted (LCR) wave and design the ultrasonic setup. Ultrasonic arrays operating at 5 MHz (8 elements) measured RS at a depth of ∼1.25 mm. Results show qualitative agreement among PAURS, ND, and IHD, with RS symmetrically distributed on both sides of the plates, validating the effectiveness of phased array probes for qualitative measurement. However, discrepancies in precise numerical values were observed across methods. As PAURS is a novel technique for welded samples, the paper highlights areas for improvement to enhance its quantitative measurement capabilities.

Item Type:	Article
Identification Number:	10.1016/j.ijpvp.2025.105518
Dates:	Date Event 24 March 2025 Accepted 25 March 2025 Published Online
Uncontrolled Keywords:	RS measurement, Phased array ultrasonic testing, Robotic welding, Ultrasonic simulation, Neutron diffraction (ND), Incremental hole drilling (IHD)
Subjects:	CAH10 - engineering and technology > CAH10-01 - engineering > CAH10-01-02 - mechanical engineering
Divisions:	Faculty of Computing, Engineering and the Built Environment > College of Engineering
Depositing User:	Gemma Tonks
Date Deposited:	13 May 2025 12:46
Last Modified:	13 May 2025 12:46
URI:	https://www.open-access.bcu.ac.uk/id/eprint/16350
